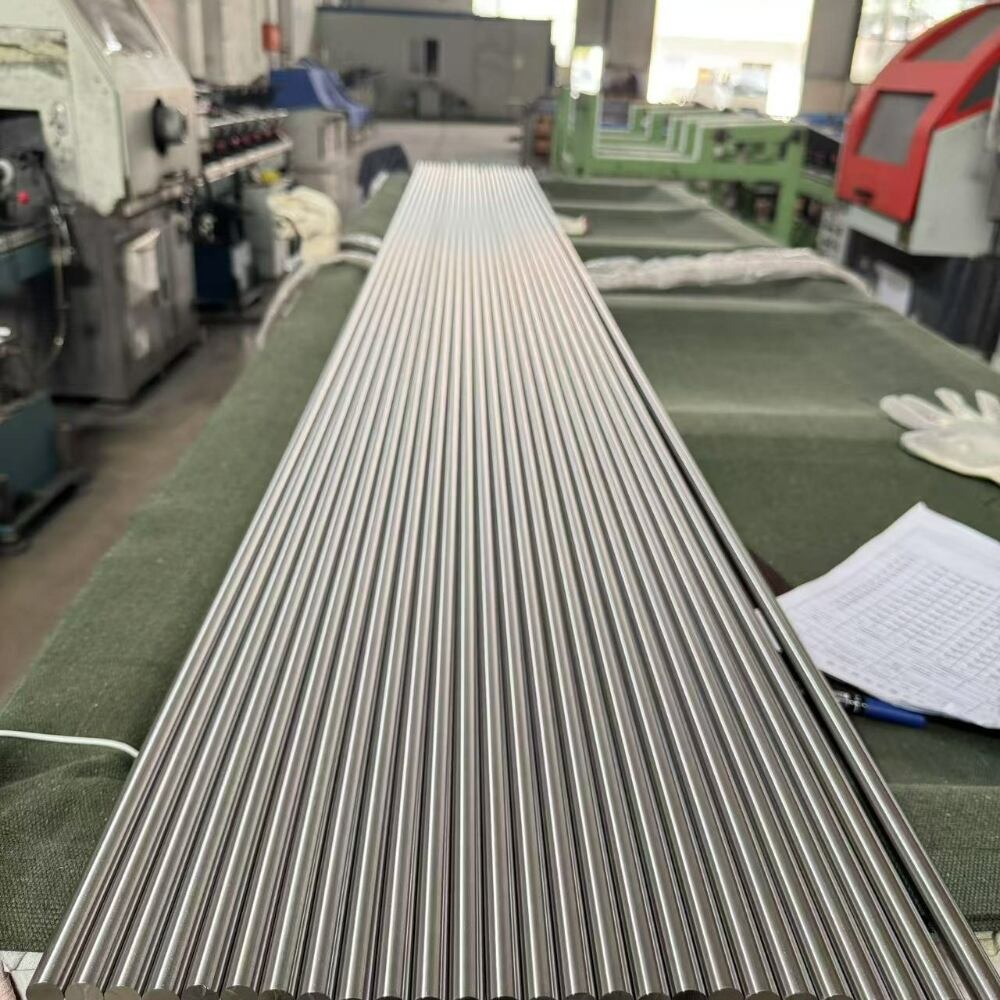

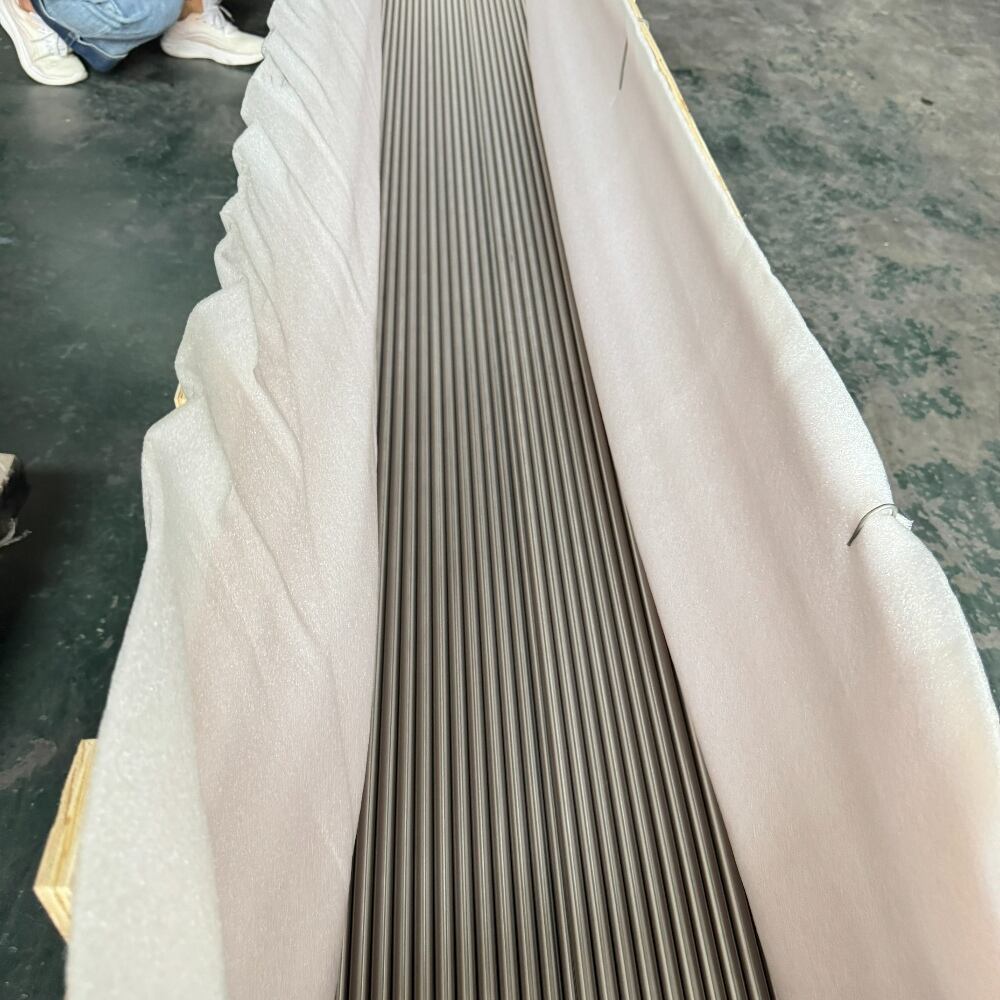

Grade23 Titanium Rod

Description：

Gr23 is the "medical-grade pure version" of Gr5.

Gr23 (Grade 23): This is the American ASTM standard designation, and it is also its most commonly used commercial name.

Ti6Al4V ELI: This is its technical name. Here, ELI is the abbreviation of "Extra Low Interstitial", meaning "extremely low gap elements".

TC4 ELI: The corresponding Chinese standard designation.

The basic composition of Gr23 is exactly the same as that of Gr5 (Ti-6Al-4V), but the core secret lies in the extreme strictness with which the impurity elements are controlled.The strictly controlled "gap elements" mainly refer to:

Oxygen: It has the greatest impact on the strength and brittleness of titanium alloys.The content of O must be less than or equal to 0.13.

By reducing the content of these elements to extremely low levels (much lower than Gr5), Gr23 has acquired the following unparalleled

Advantages:

Exceptional biocompatibility and safety: This is its primary goal. The extremely low impurity content minimizes potential adverse reactions in human tissues, ensuring the long-term safety of the implant in the body for decades.

Higher fracture toughness: While maintaining sufficient strength, the ELI level endows it with superior toughness and crack propagation resistance. This is crucial for implants subjected to cyclic loads (such as hip joints), as it can prevent brittle fractures.

Better low-temperature toughness: "ELI" was originally developed to meet the toughness requirements for low temperatures (such as in liquid hydrogen environments) in the aerospace field.

More balanced comprehensive performance: Compared to Gr5, its strength may be slightly reduced (but still much higher than pure titanium), but in return, it has achieved a significant improvement in toughness and reliability. Its fatigue strength is also very outstanding.

Applications:

It is precisely because of the aforementioned extreme purity, excellent biocompatibility and high toughness that the application scope of Gr23 titanium rods is highly specialized and high-end, almost entirely concentrated in the most demanding fields:

1. The field of medical implants (the absolutely core application, accounting for over 90% of its usage)

This is the undisputed main battlefield for Gr23. It is regarded as the "gold standard" for titanium alloys used in surgical implants.

Orthopedic implants:

Artificial joints: Hip joint stem, femoral head, knee joint components. These parts need to withstand the weight of the human body and cyclic loads for several decades, and have extremely high requirements for fatigue strength and toughness.

Spinal fusion devices and internal fixation systems: Intervertebral fusion devices, pedicle screws, connecting rods. They need to have close contact with the nervous system and have the highest biocompatibility requirements.

Trauma products: Bone plates, intramedullary nails and screws used for fixing complex fractures.

Dental implants: The preferred material for high-end dental implants. It has excellent surface treatment properties and can achieve excellent bone integration with the jawbone.

Cardiovascular Surgery: Cardiac pacemaker casings, artificial heart valve rings, etc.

Craniofacial reconstruction: Customized implants used to repair the skull and facial bones.

2. Aerospace and high-end industries (secondary but crucial applications)

Taking advantage of the high toughness and reliable weldability brought by its "ultra-low gap elements".

Aerospace: It is used to manufacture components that have extremely demanding requirements for low-temperature toughness and damage tolerance, such as certain spacecraft fuel tanks and critical structural components. In these fields, it competes with Gr5, but is used for more critical and less tolerable areas.

Deep-sea submersible: The pressure-resistant shell components are required to have extremely high reliability under high static water pressure.

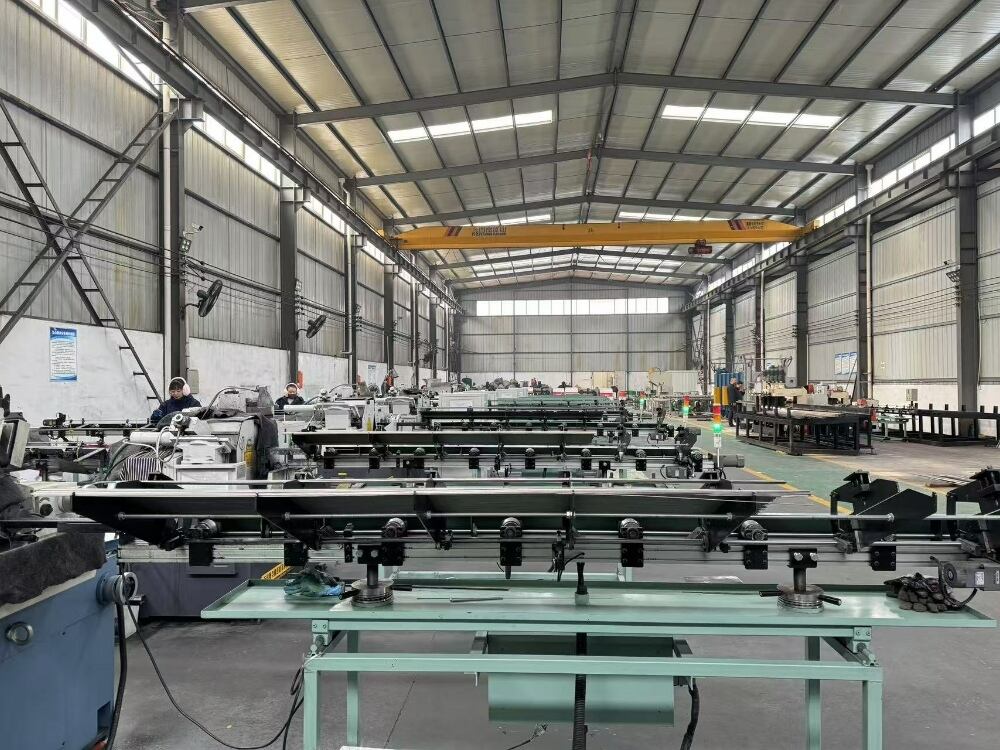

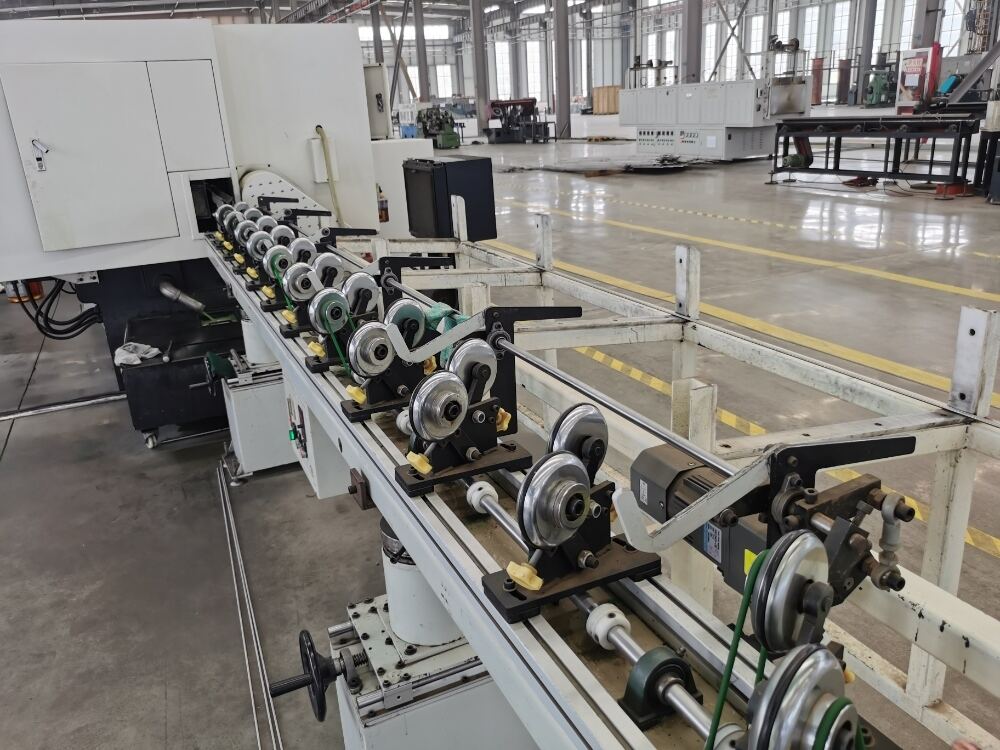

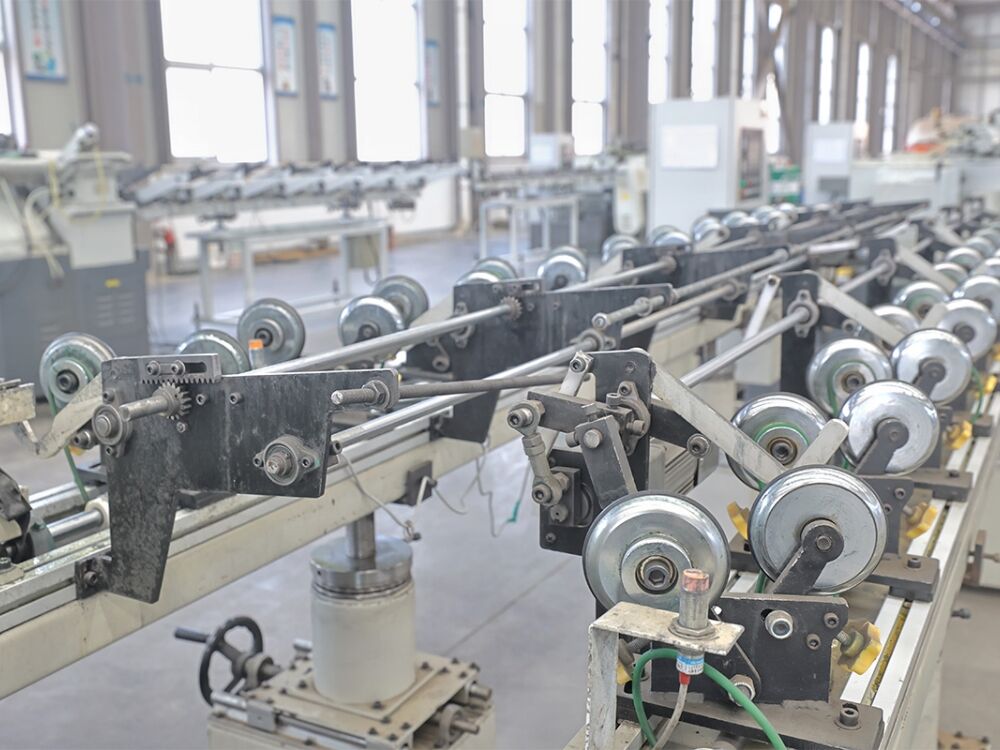

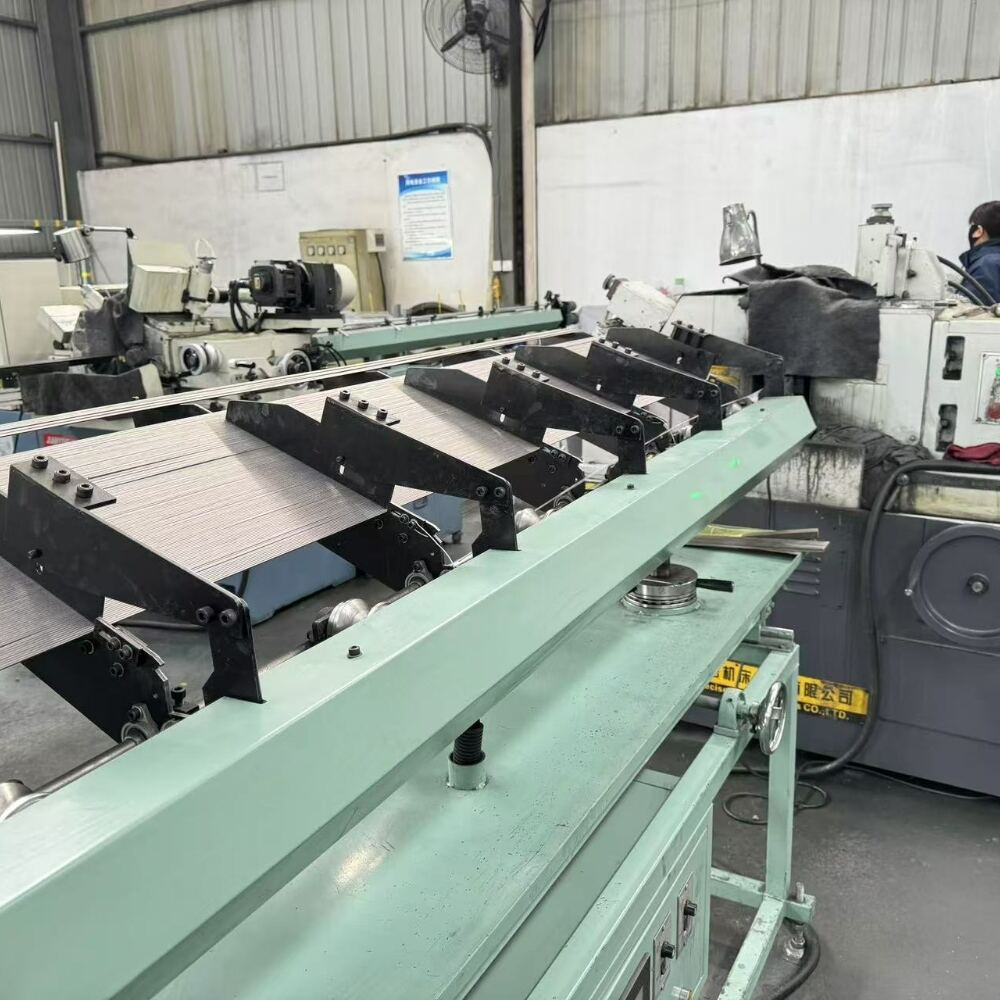

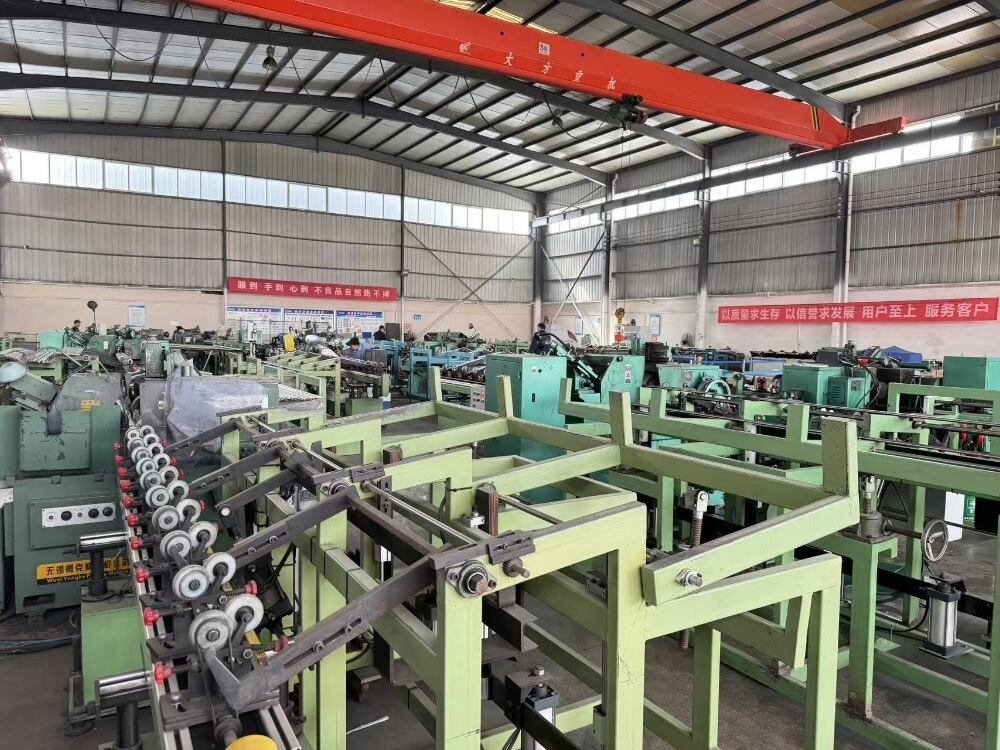

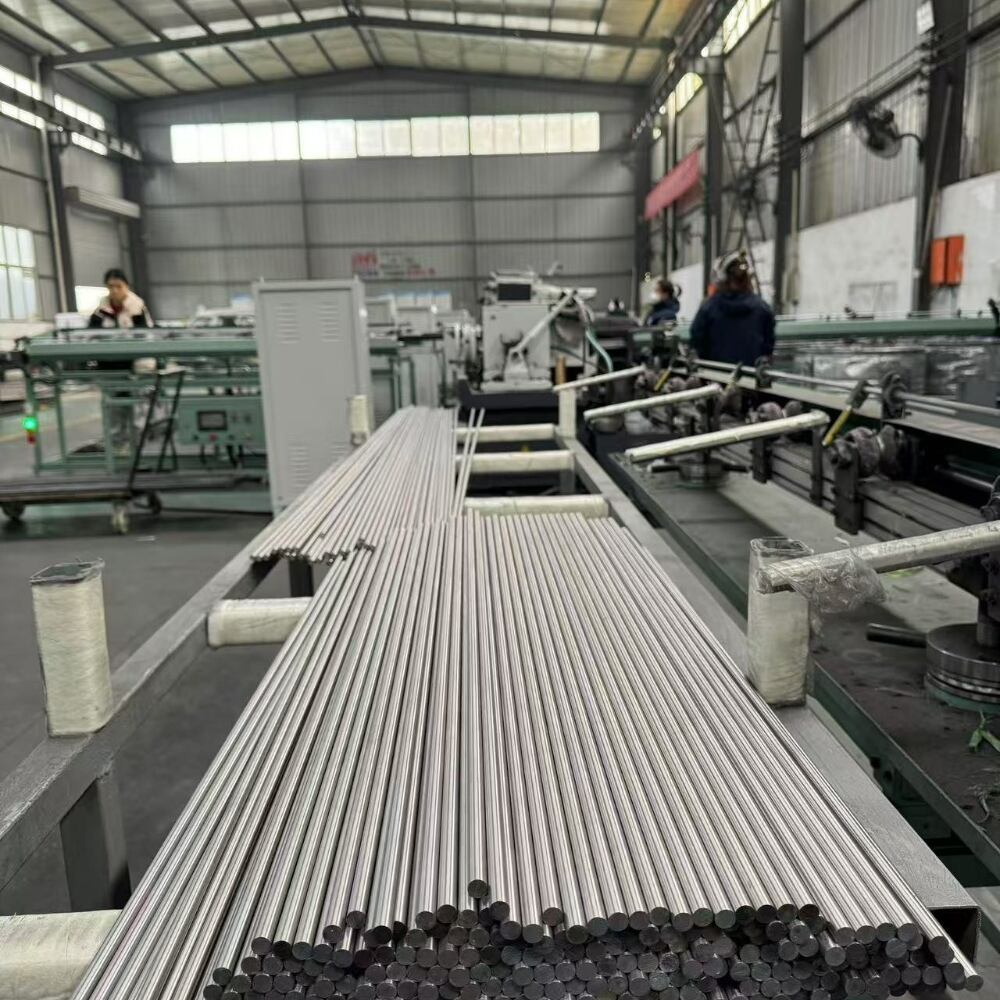

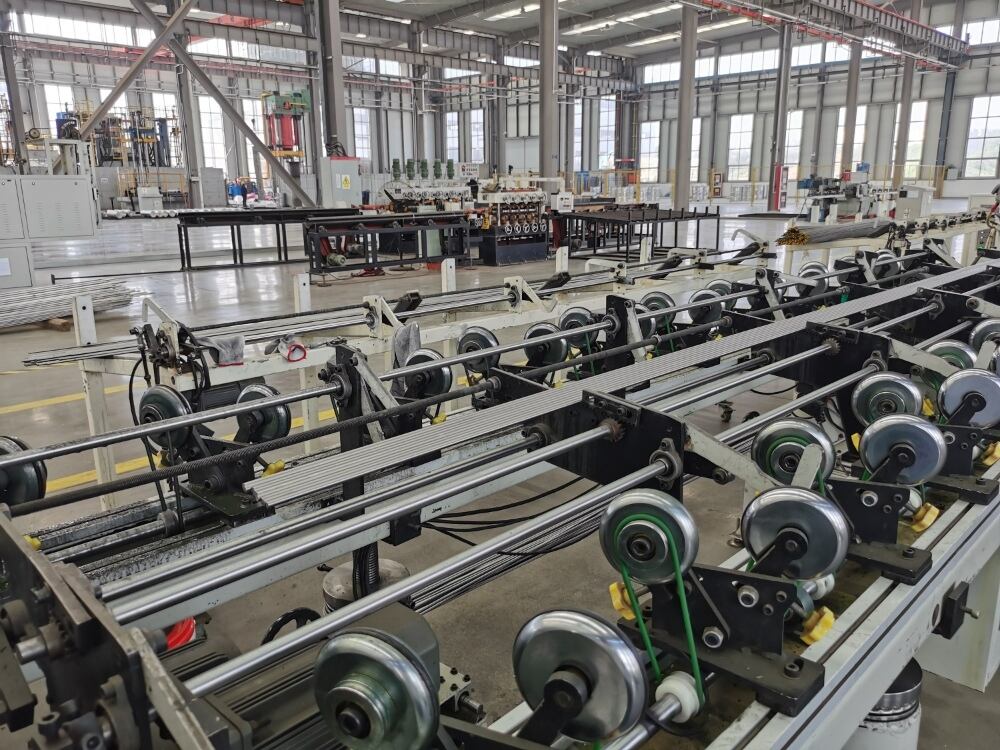

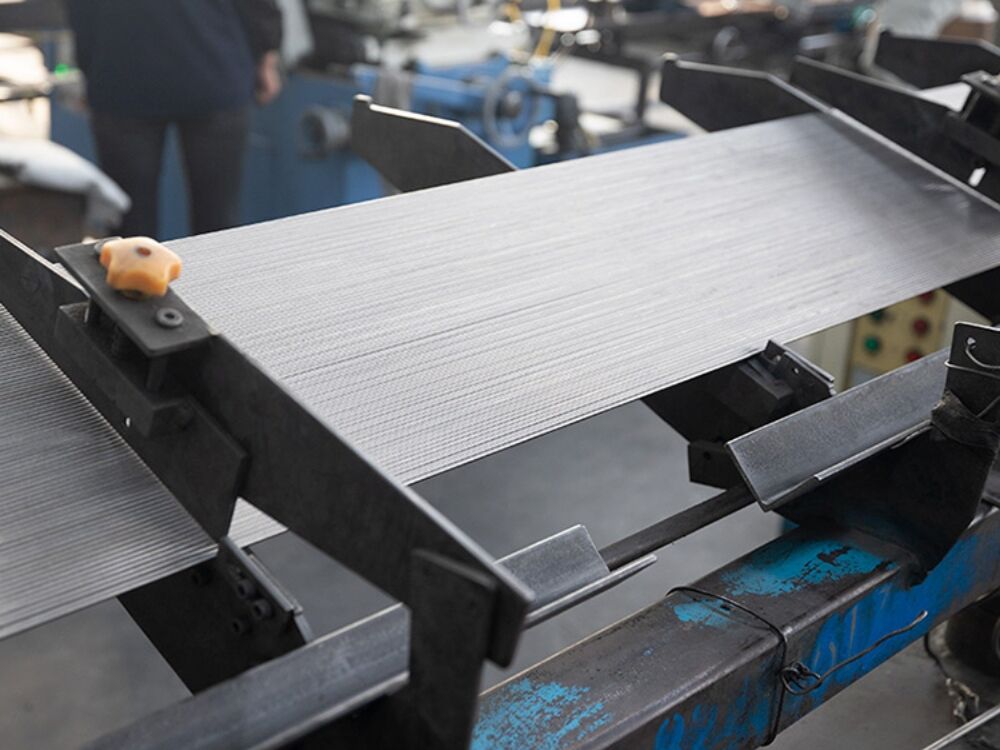

Production line:

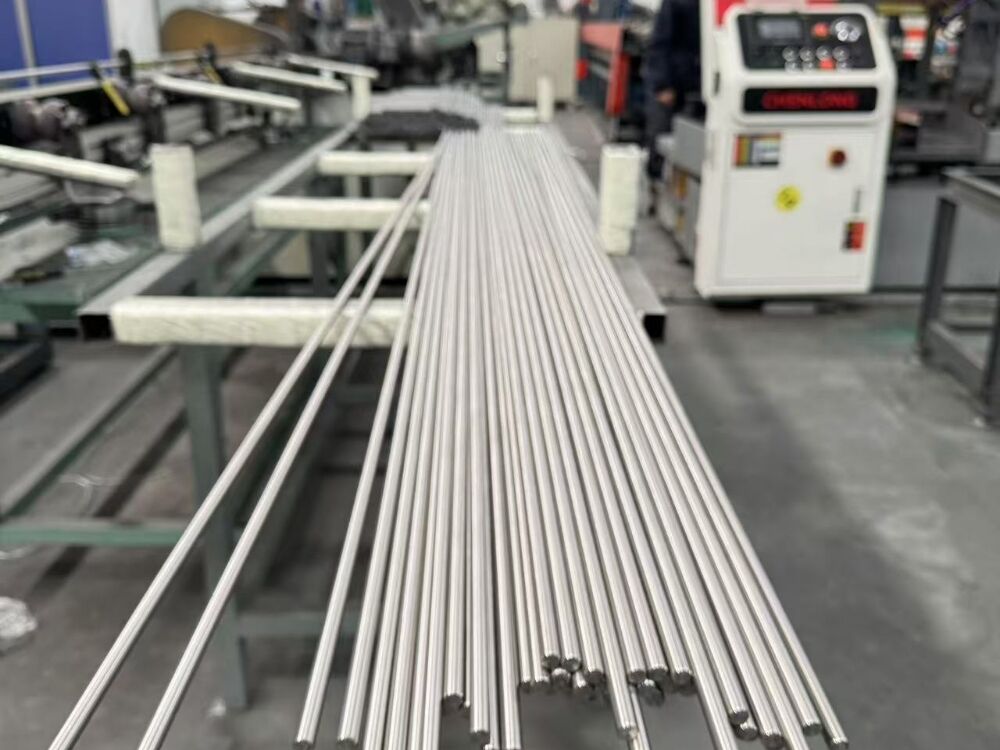

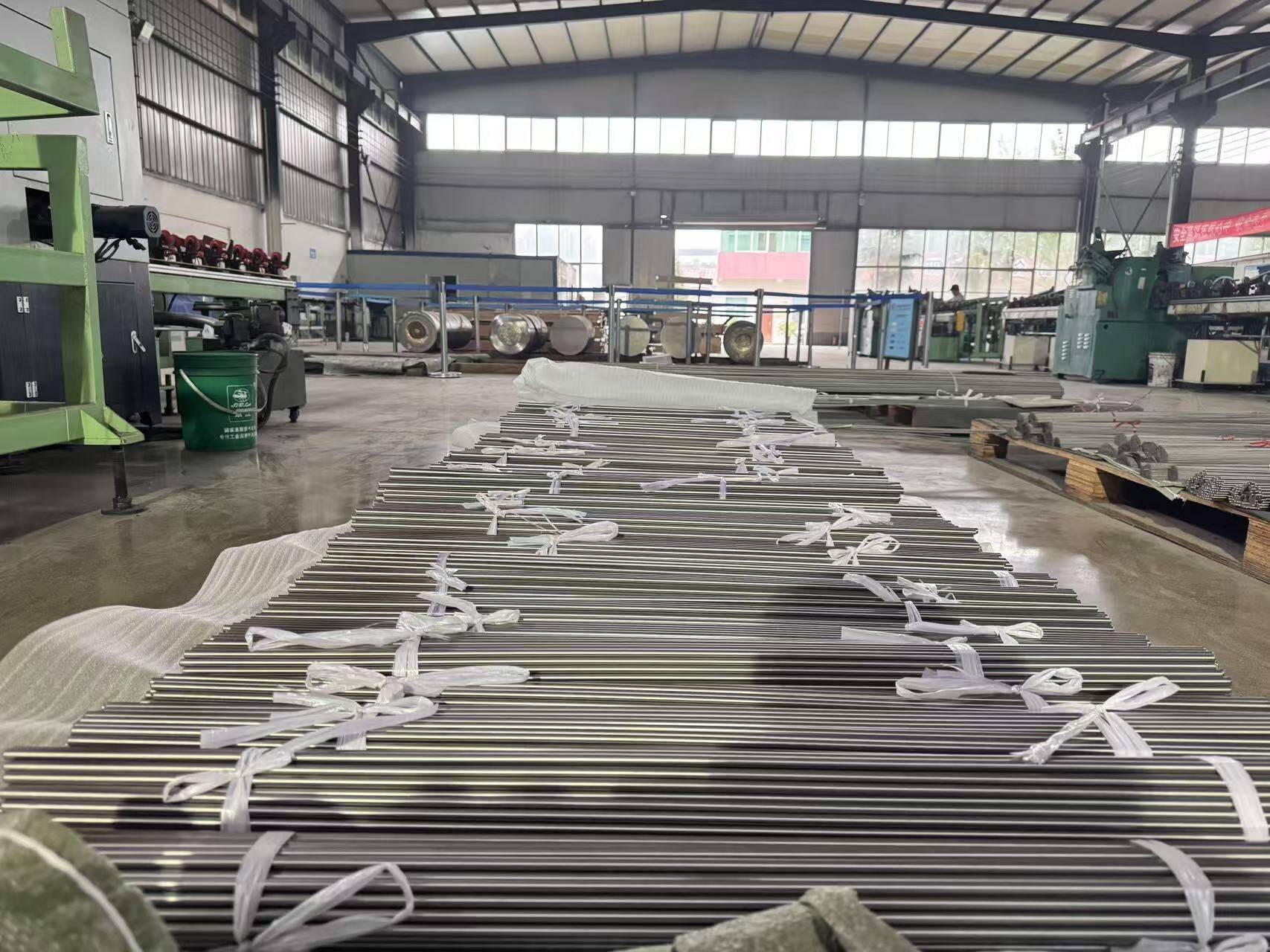

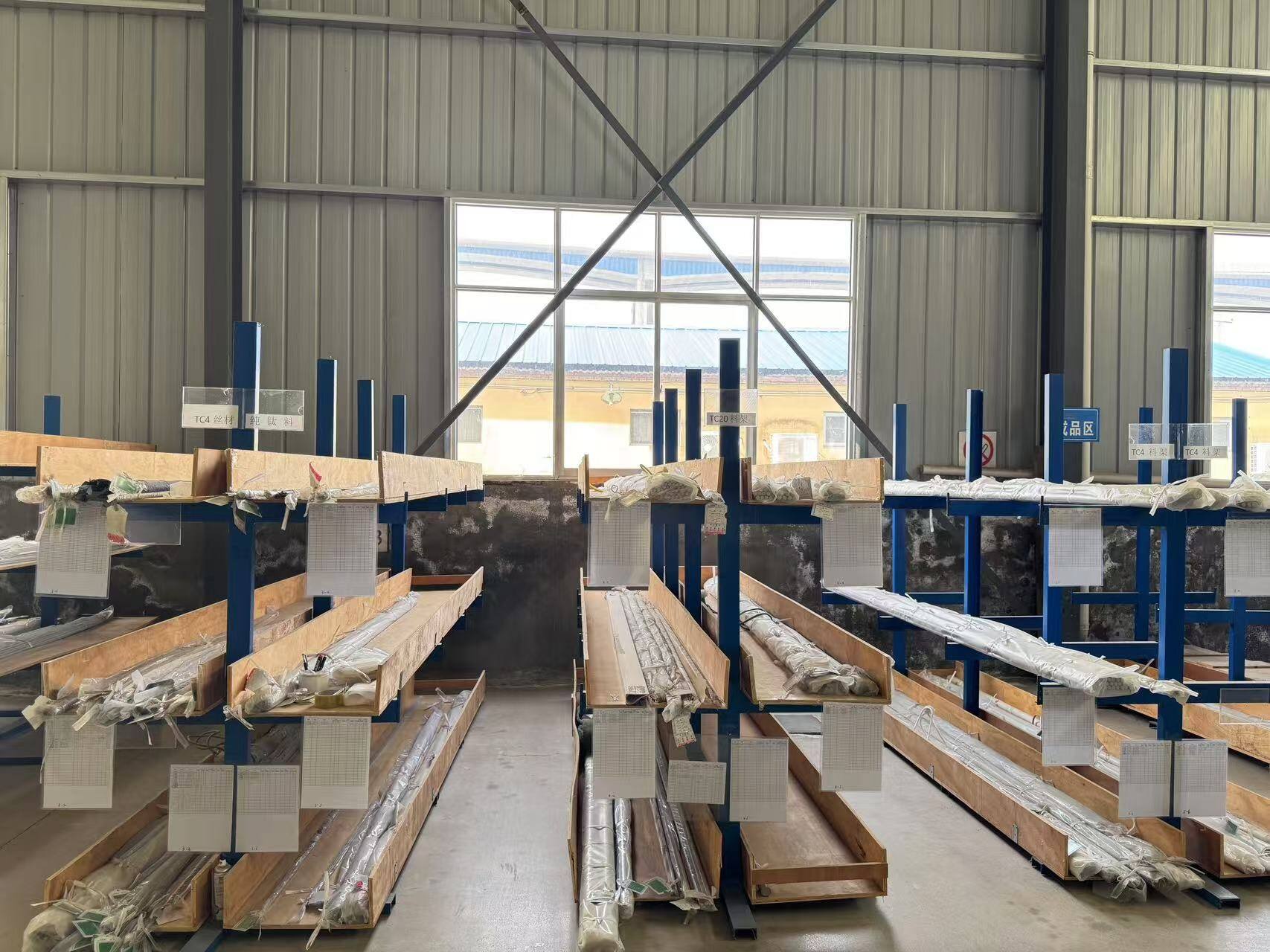

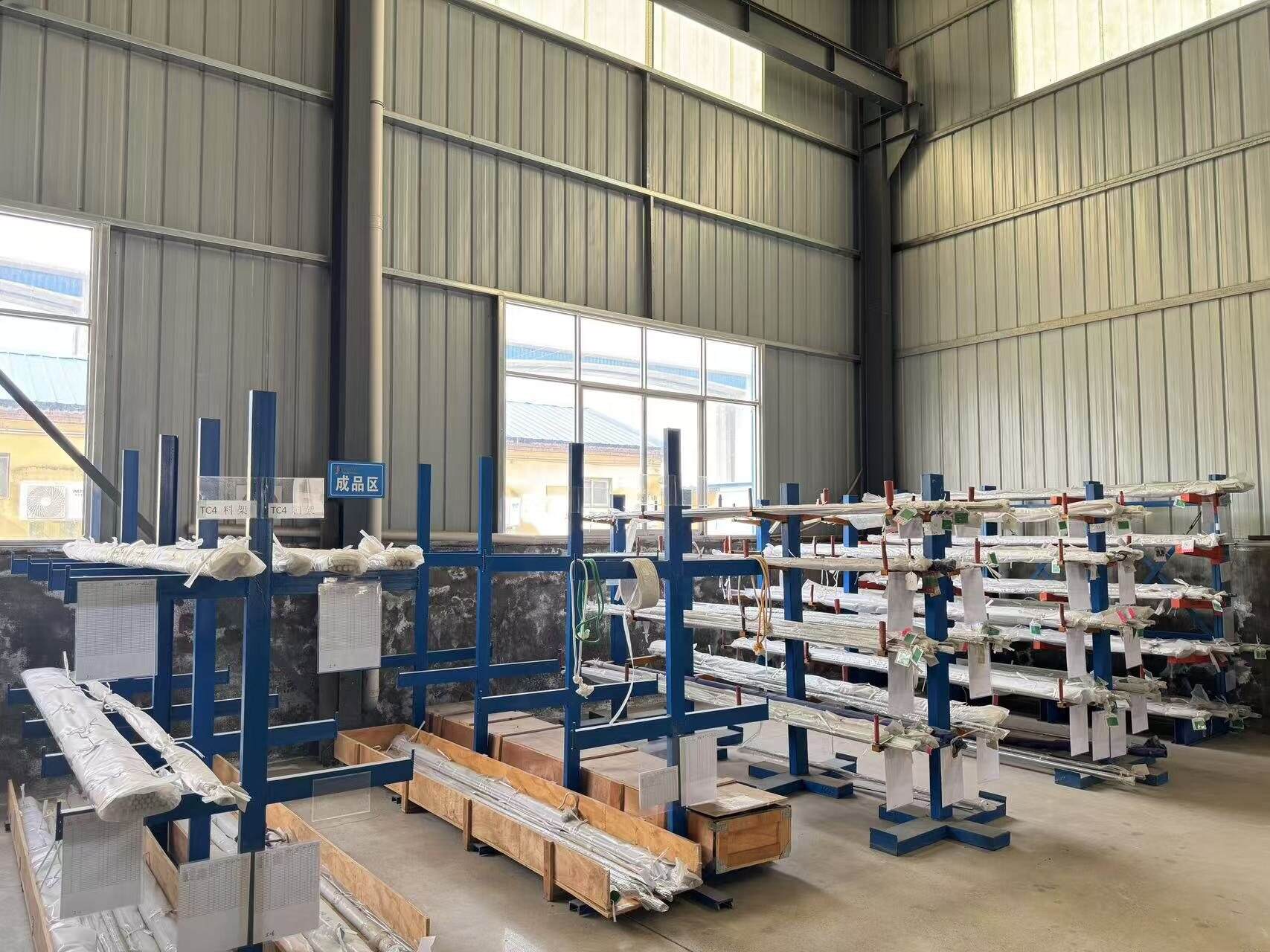

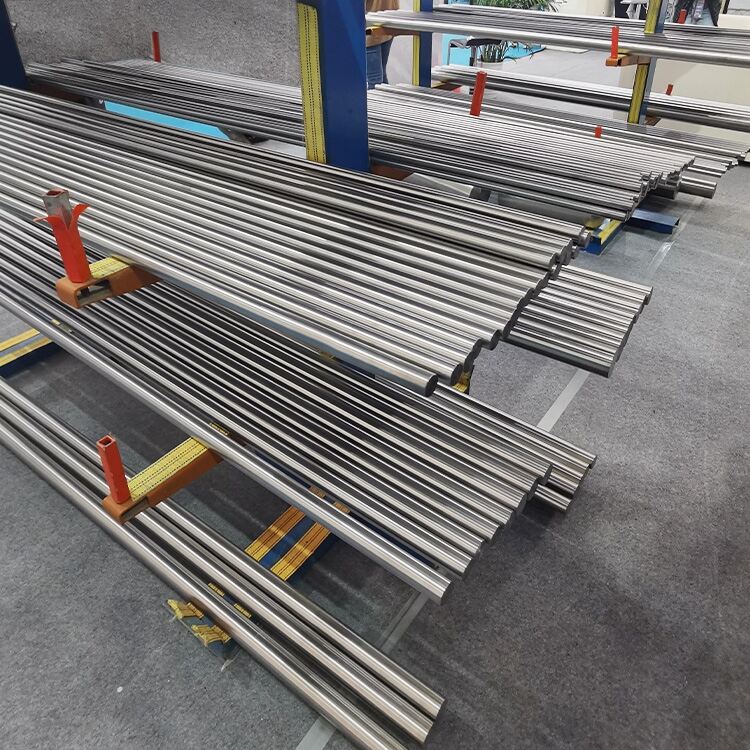

Stock:

Ylasting titanium factory can produce any size and any grade High-Strength Titanium Round Bar and rod, all have stock,can ship out within 2days.

Competitive Advantage:

Fast delivery within 2days

About titanium round bar we have many stock,please contact us to get what you need.Titanium bar have pure titanium and alloy titanium,different grade have different peculiarity,so let's start to contact us

Custom

It can be customized according to your requirements for titanium and titanium alloy rod or bar.

Quality Check

At Ylasting titanium, titanium rod and bar after production, will be test by QC department, and then send the sample to third-party, all data meet with technical standard, will be packed and shipped out for clients.

How to order

If you are interested our product, please contact us with this information:

Materials: such as GR1 GR2 GR3 and GR5 GR23

Diameter: Ranges from a few millimeters to hundreds of millimeters.

Length: Typically available in fixed or variable lengths, such as 1meters, 2 meters, and 3 meters.

Conditions: Available in annealed (M), hot-worked (R), and cold-worked (Y). Different conditions correspond to different mechanical properties.

Standards: Complies with standards such as ASTM (American Society for Testing and Materials) .
