1KG/PCS(Min.Order)
Density:4.51g/cm³
High strength, corrosion resistance
More details below
Titanium anode is a special electrode material with many advantages and application areas.Titanium anodes can have oxygen evolution or chlorine evolution functions depending on the catalytic coating on their surface.Titanium anode is not only a high-performance electrode material, but also plays an important role in modern industry and technology due to its multiple advantages and wide range of applications.
| Material |
1) Grade 1 titanium as substrate, mixed Ru-Ir oxide as coating 2) Grade 1 titanium as substrate, mixed Ir-Ta oxide as coating 3) Grade 1 titanium as substrate, Platinum as coating |

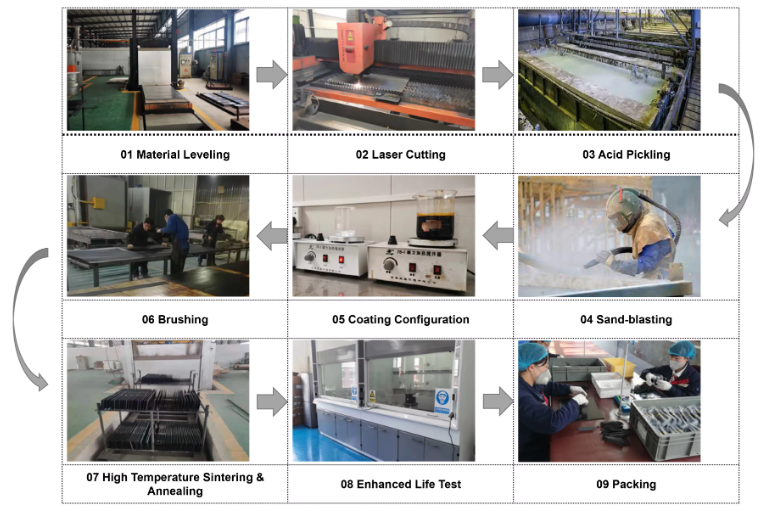

| Technology | Sand blasting, Acid washing, Brush Coating & Sintering |

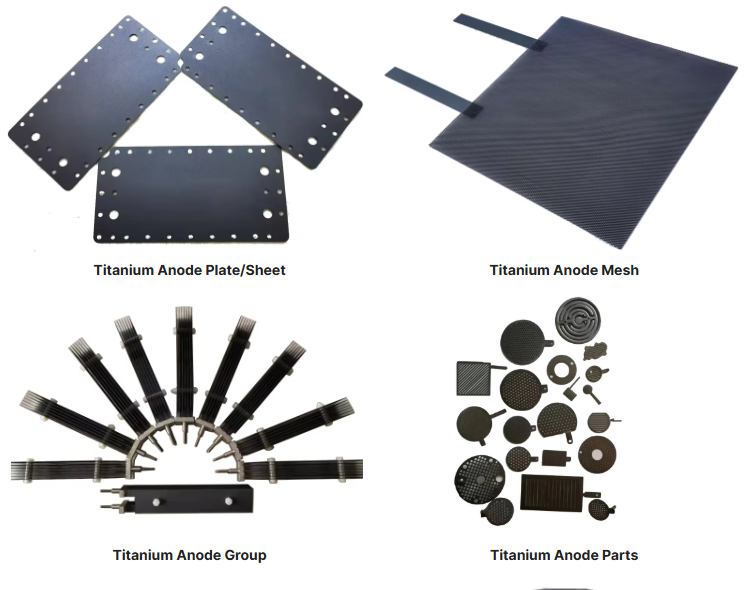

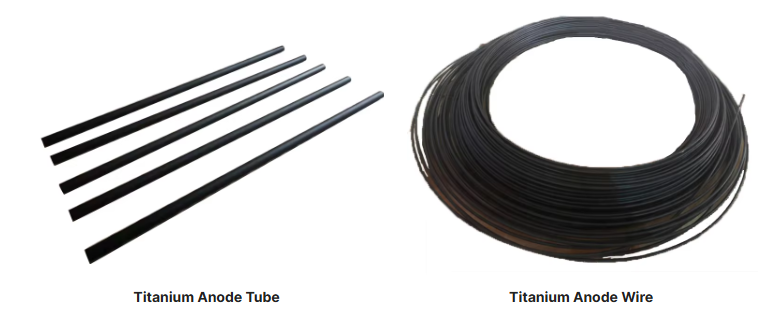

| Dimension and Shape | Different dimension and shape is available, or according to custom design / drawing |
| Working Parameter |
1) Current density ≤ 2000A/M2 Temperature < 60°C |
| Features |
1) Effective & environment-friendly method 2) High anti-corrosion property 3) High current efficiency property 4) Low chlorine evolution voltage 5) High catalytic property 6) Long lifetime 7) Light weight electrodes Keep the operating voltage stably |
| Applications |

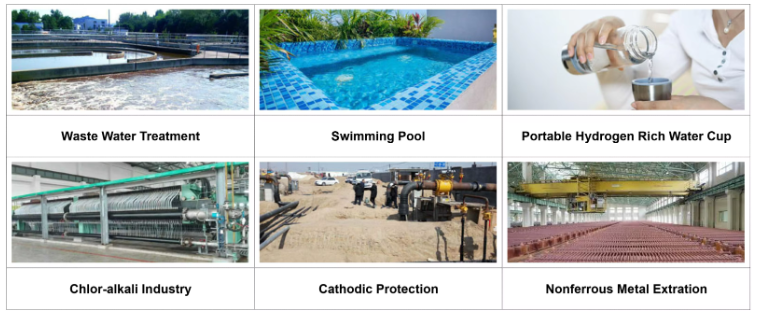

1) Organic sewage treatment 2) Chemical sewage treatment 3) Pesticide sewage treatment 4) Drinking water disinfection 5) Bleaching & dyeing 6) Swimming pool water 7) Domestic sewage treatment 8) Hospital sewage treatment 9) Food industry disinfection Industrial waste water treatment, etc. |
| Remarks |
1) Titanium anode also called MMO anode, DSA & Insoluble anode Cathode also be provided |
| Packing | Plastic or paper as inside, carton or plywood case as outside, or according to client’s demand |
1.For water treatment like ballast water, brine water, hospital wastewater, Industrial wastewater, swimming pool water, organic wastewater, dyeing sewage water, etc.
2.For sodium hypochlorite generators.
3.For Chlor-alkali industry.
4. For metal electrowinning, metal recovery, etc.
1. Sodium chlorate production
2. Sodium hypochlorous production
3. Electrolyze to exact nonferrous metal
4. Seawater electrolysis
5. Caustic soda production etc
1. Electrodialysis
2. Continuous production of tinsel
3.Organic electrolysis
4. Industrial plating
5. Cathode protection etc
1. Industrial plating
2. Electrolysis oxidation
3. Steel plate plating in iron and steel industry
4. Acid-base ionic water generator
1)Stable working ability under high current density & Voltage
2) High electrolysis efficiency
3) Stable electrolysis ability
4) High anti-corrosion property
5) The matrix can be recycled and recoated with MMO for reuse
6) Long working life etc.
