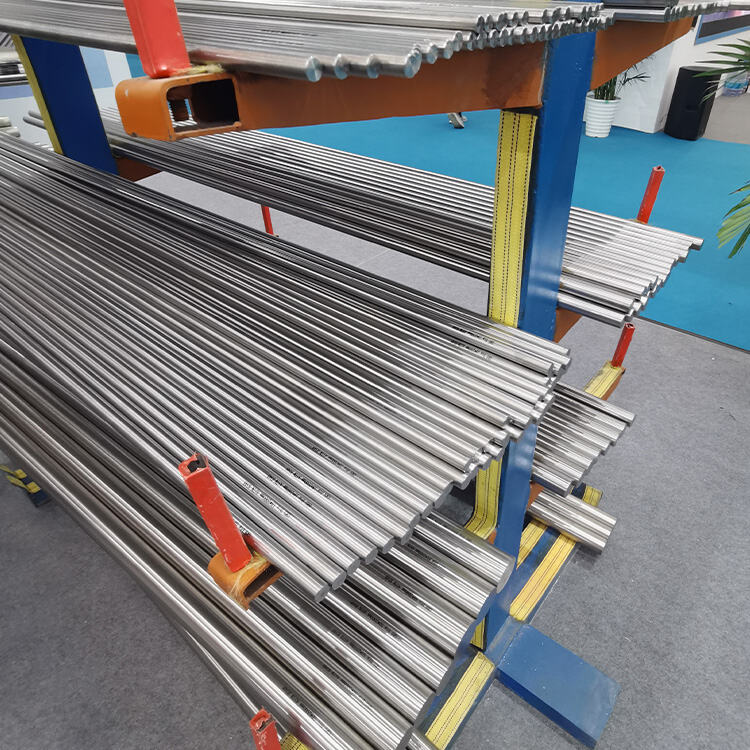

Titanium Ti6Al4V Rod

Description：

Ti6Al4V: An internationally recognized standard designation, it clearly indicates its composition: 6% aluminum (Al), 4% vanadium (V), with the remainder being titanium (Ti). Aluminum and vanadium are the core alloying elements of this material.

TC4: This is the Chinese national standard designation (GB/T 2965).

GR5: This is the American ASTM standard grade (Grade 5).

It is an α-β type two-phase titanium alloy. It can be strengthened to a certain extent through heat treatment (solution treatment + aging), but the most commonly used state is the annealed state to achieve good comprehensive performance.

Characteristic:

Extremely high specific strength: Its strength (approximately above 900 MPa) is comparable to that of many alloy steels, but its density is only 60% of that of steel. This means that at the same strength level, the weight of the component can be significantly reduced.

Excellent corrosion resistance: The surface can form a dense oxide film, providing outstanding corrosion resistance to air, seawater, chloride ions, as well as various acid and alkali media. It is far superior to stainless steel.

Excellent comprehensive mechanical properties: While maintaining high strength, it also possesses good toughness, fatigue resistance, and a relatively low elastic modulus (closer to that of human bones).

Medium-temperature performance is acceptable: It can operate continuously at temperatures ranging from 300°C to 350°C, but if the temperature rises further (such as above 400°C), its strength and creep resistance will significantly decrease.

Excellent biocompatibility: Non-toxic to the human body, no allergic reactions, and highly compatible with human tissues.

Weldable and machinable: Compared to other high-performance titanium alloys, it has better welding and machining properties.

Applications:

The Ti6Al4V titanium rod, due to its outstanding comprehensive performance, is applied in almost all fields that have strict requirements for strength, weight and corrosion resistance. It can be regarded as the "pillar material" for aerospace, medical and high-end industries.

1. Aerospace industry (the largest application field)

Aircraft components: fuselage frame, wing beams, landing gear parts, fasteners, cabin doors, etc. Reducing weight can directly save fuel, increase range and payload.

Aerospace engine: The blades, discs, and casing of the low-pressure compressor (the parts that operate at temperatures typically below 300°C). In the higher-temperature high-pressure compressor section, they will be replaced with heat-resistant titanium alloys such as Ti-6242.

Spacecraft components: Rocket engine casings, satellite brackets, pressure vessels, etc.

2. Medical Devices and Implants (Key Application Areas)

Orthopedic Implants: Artificial joints (hip and knee joints), bone plates, screws, spinal fixation devices, etc. Utilizing their high strength, light weight, corrosion resistance, and biocompatibility.

Dental implant: The root part.

Surgical instruments: Require lightweight, highly durable tools that can withstand repeated disinfection.

3. Marine Engineering and Ships

Deep-sea submarines: Pressure-resistant hulls, propulsion components.

Ship components: Propeller, transmission shaft, seawater piping system. Due to their outstanding resistance to seawater corrosion.

4. High-end consumer goods and sports equipment

Bicycles: High-end frames, front forks, components.

Golf club: Head, shaft.

Watch: Case, Strap.

Eyeglass frame: Lightweight, durable, and non-allergenic.

5. Chemical and Energy Industries

Used for manufacturing valves, pumps, and heat exchanger pipes that need to withstand harsh chemical environments (such as chloride environments).

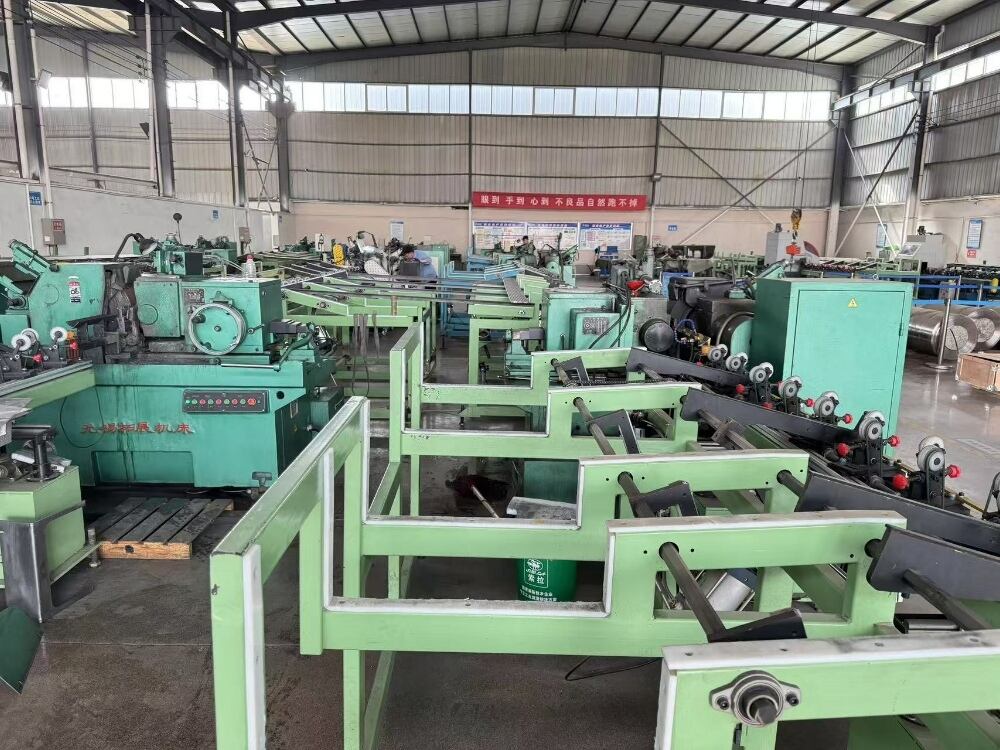

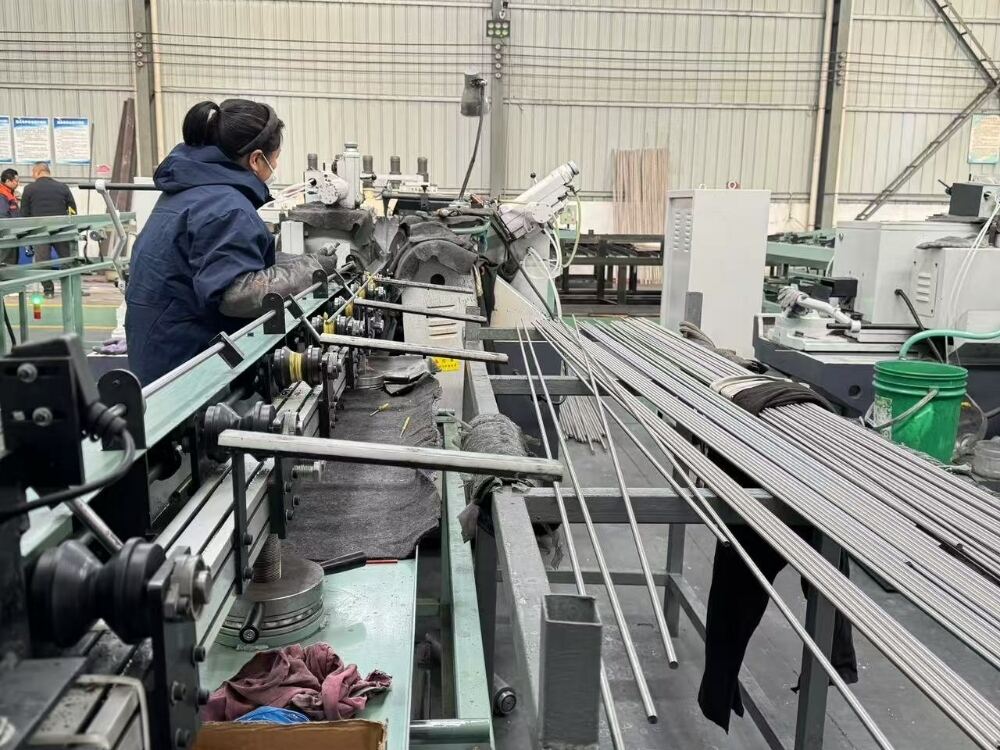

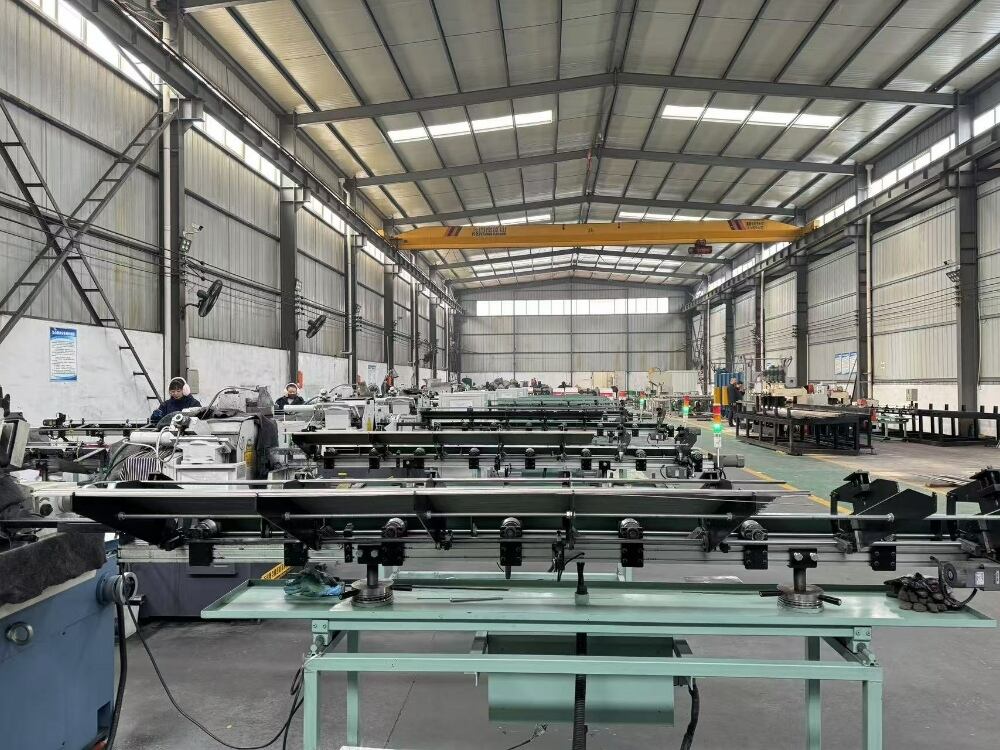

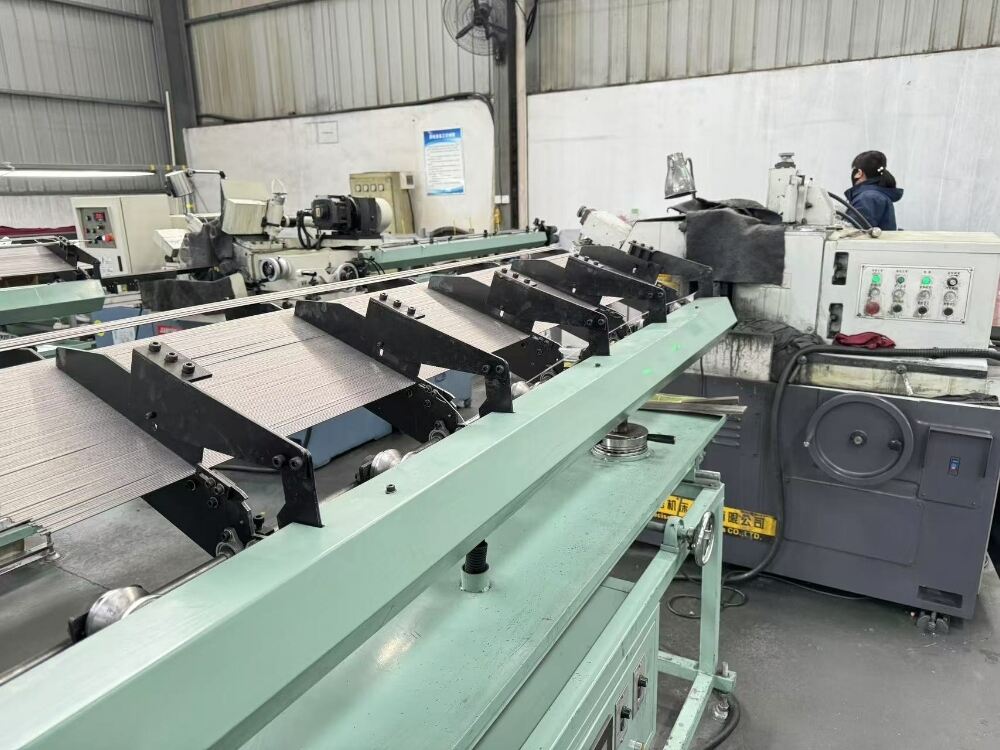

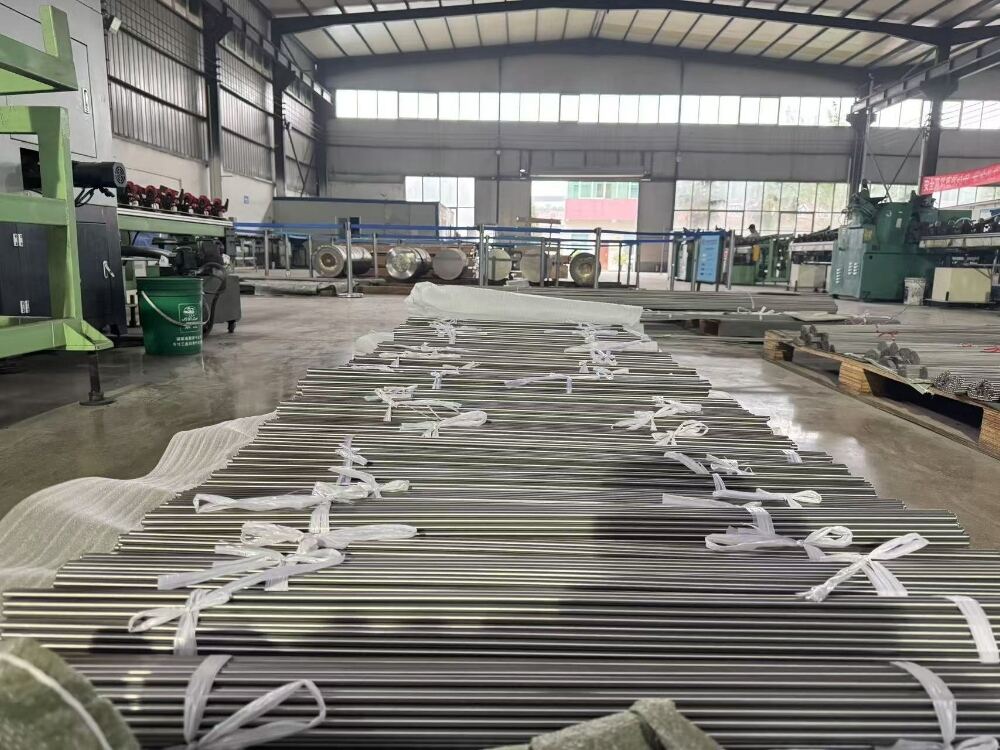

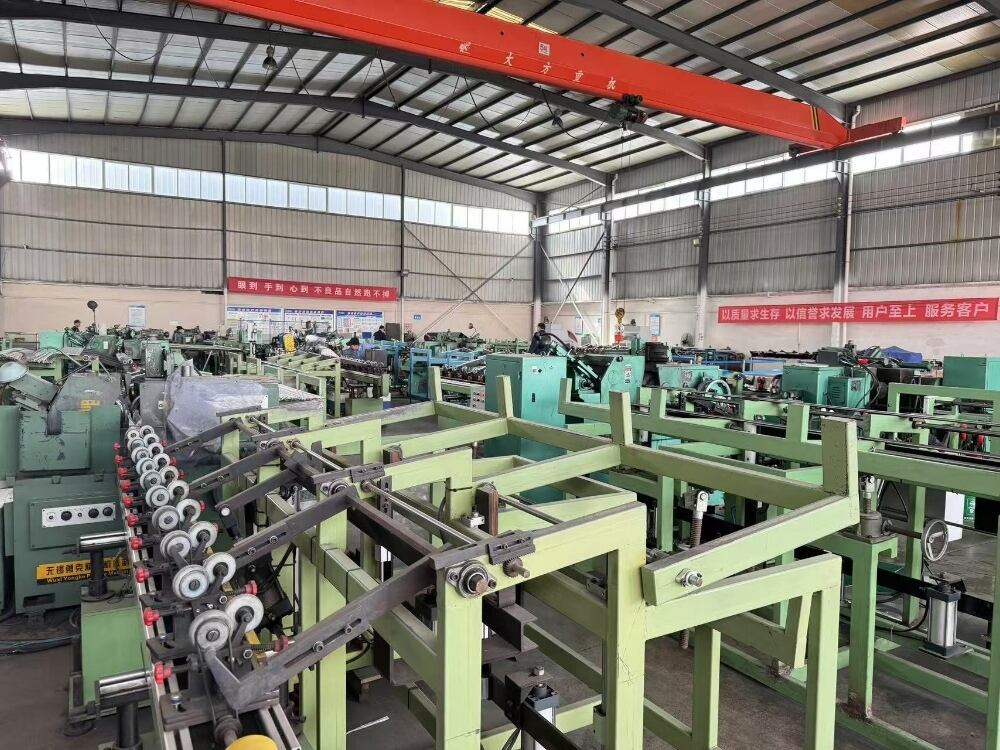

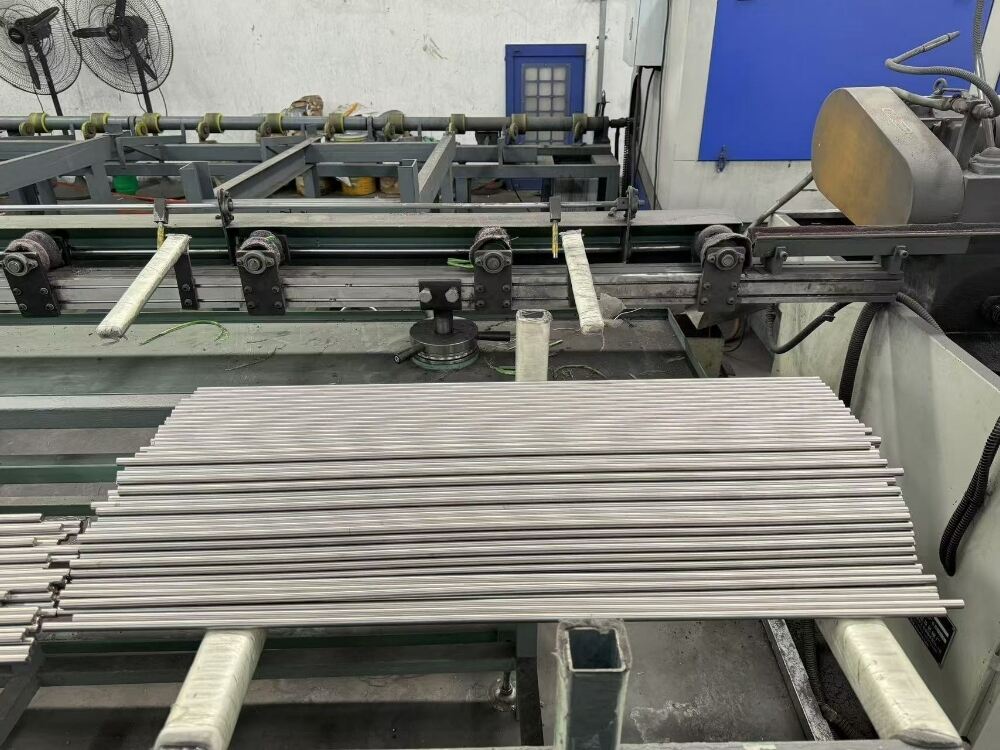

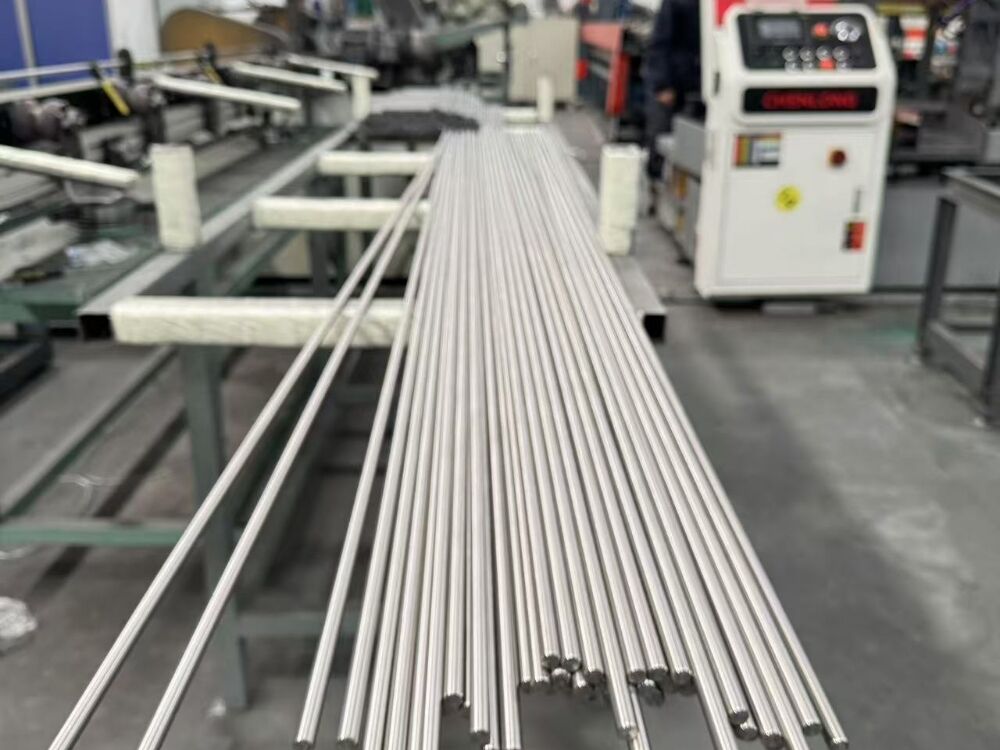

Production line:

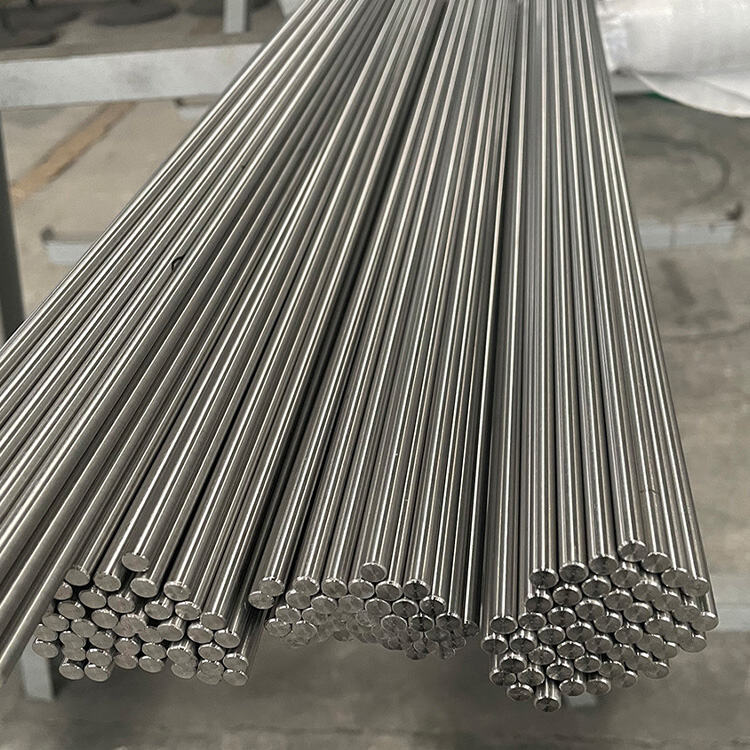

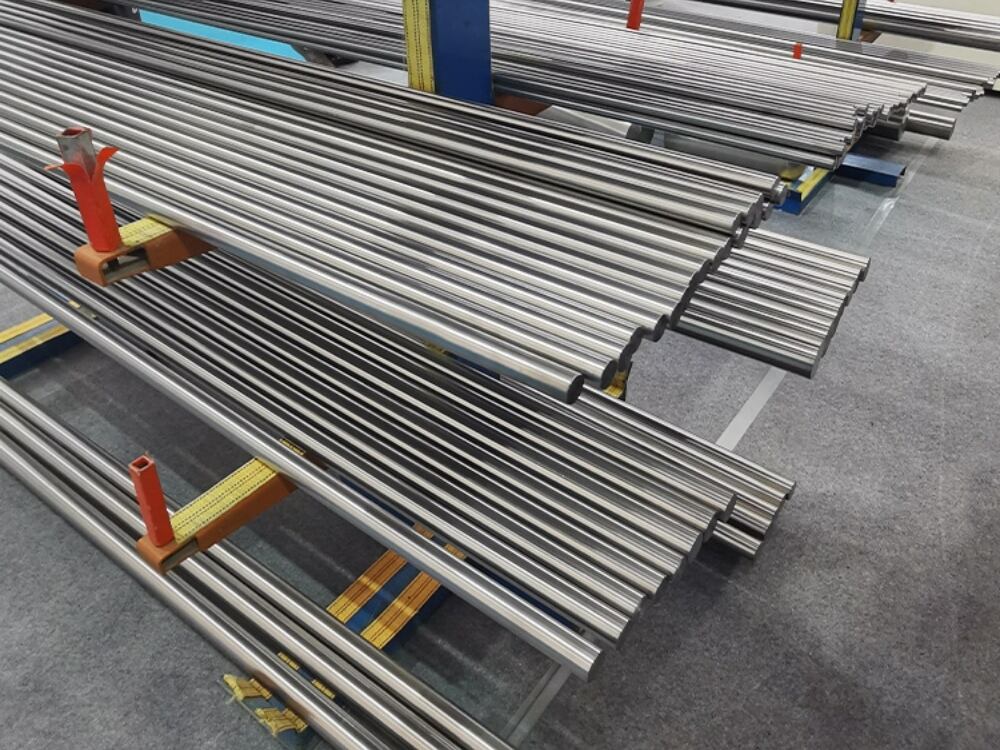

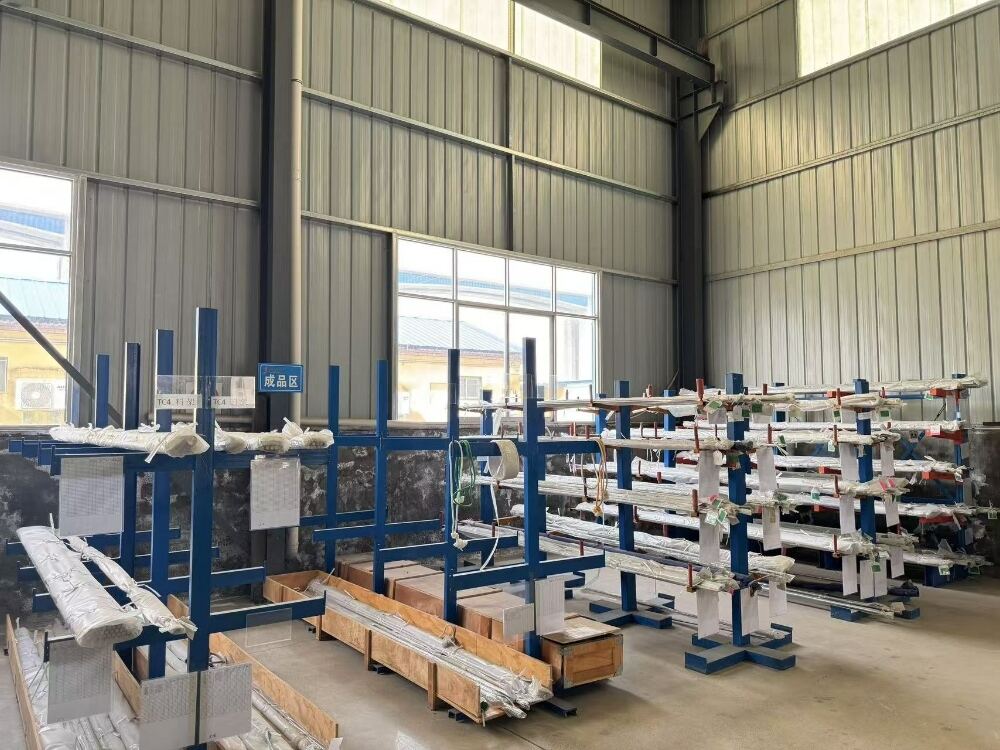

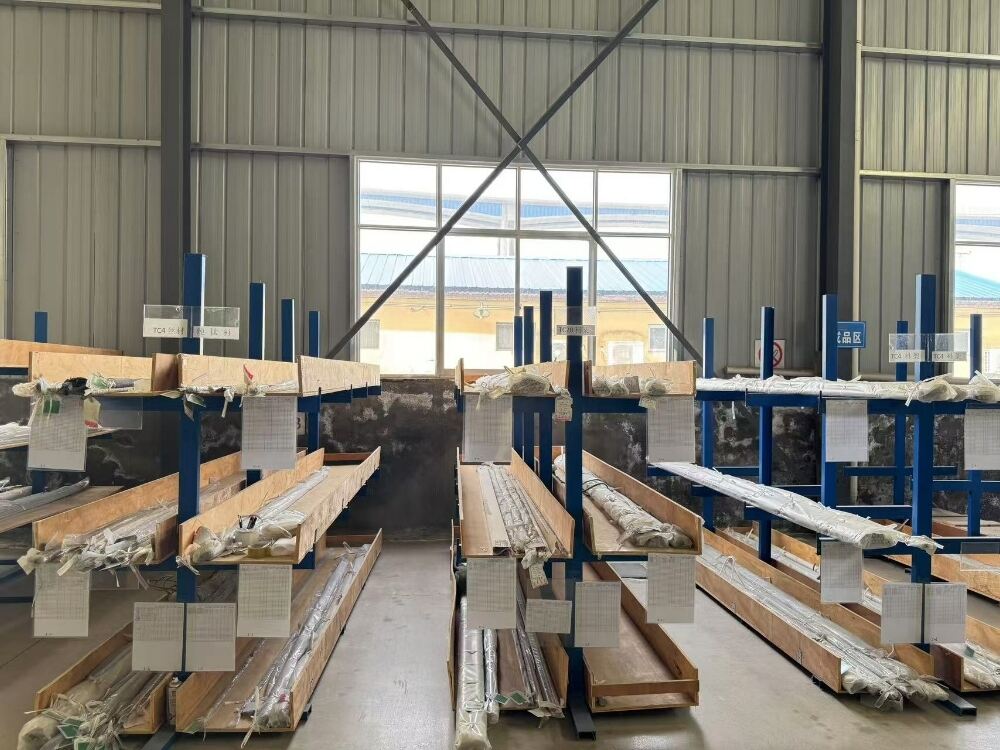

Stock:

Ylasting titanium factory can produce any size and any grade High-Strength Titanium Round Bar and rod, all have stock,can ship out within 2days.

Competitive Advantage:

Fast delivery within 2days

About titanium round bar we have many stock,please contact us to get what you need.Titanium bar have pure titanium and alloy titanium,different grade have different peculiarity,so let's start to contact us

Custom

It can be customized according to your requirements for titanium and titanium alloy rod or bar.

Quality Check

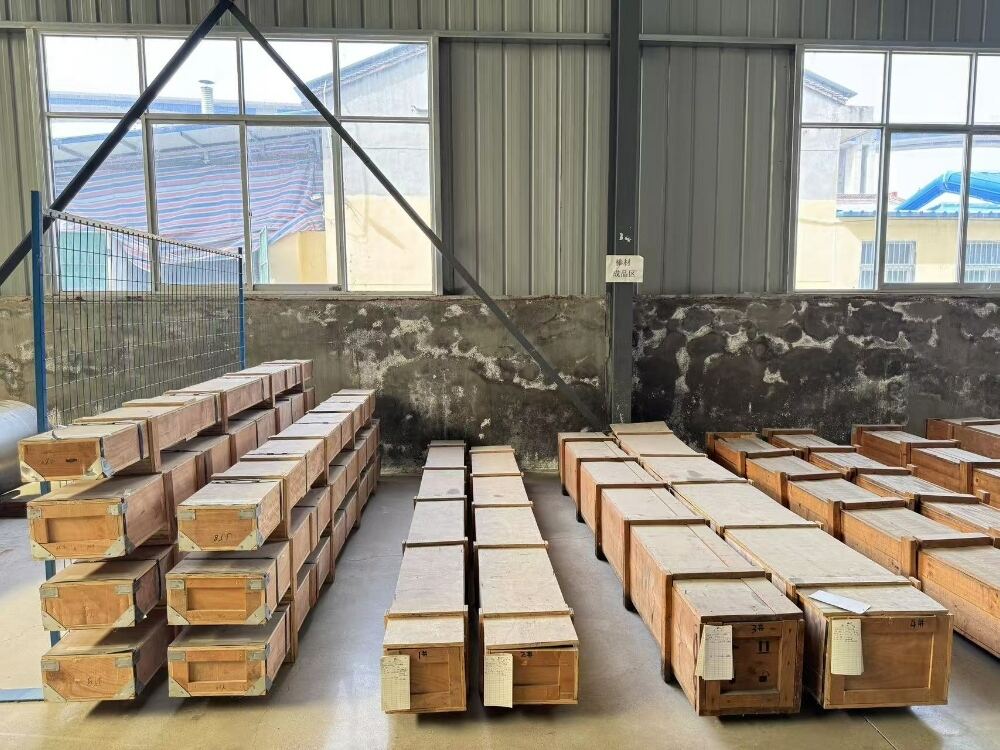

At Ylasting titanium, titanium rod and bar after production, will be test by QC department, and then send the sample to third-party, all data meet with technical standard, will be packed and shipped out for clients.

How to order

If you are interested our product, please contact us with this information:

Materials: such as GR1 GR2 GR3 and GR5 GR23

Diameter: Ranges from a few millimeters to hundreds of millimeters.

Length: Typically available in fixed or variable lengths, such as 1meters, 2 meters, and 3 meters.

Conditions: Available in annealed (M), hot-worked (R), and cold-worked (Y). Different conditions correspond to different mechanical properties.

Standards: Complies with standards such as ASTM (American Society for Testing and Materials) .
