A titanium solid sphere refers to a solid spherical object made of pure titanium (such as Grade 1, Grade 2) or titanium alloys (such as Grade 5, TI15333). It is formed through precise mechanical processing (numerical control turning), forging, grinding or powder metallurgy, with a smooth surface and no internal voids.
| Parameters | Typical Range | Remarks |
|---|---|---|
| Diameter | 1.0 mm to over 100 mm | Small sizes (such as 1-5 mm) are often used in jewelry or precision instruments; large sizes (over 50 mm) are used in industry or decoration. |
| Diameter Tolerance | ±0.01 mm to ±0.05 mm | High-precision spheres can reach ±0.005 mm (for bearings or flow control). |
| Surface Finish | Ra 0.2 μm to Ra 1.6 μm | Available in turning state, grinding state, mirror finish state or matte finish state. |
| Material Selection | Pure titanium (Gr1/Gr2) or titanium alloy (Gr5/TI15333) | Pure titanium is corrosion-resistant and easy to color; titanium alloy has higher strength and better wear resistance. |
| Forming Process | CNC engraving, optical grinding, precision forging | Process determines cost and precision. |

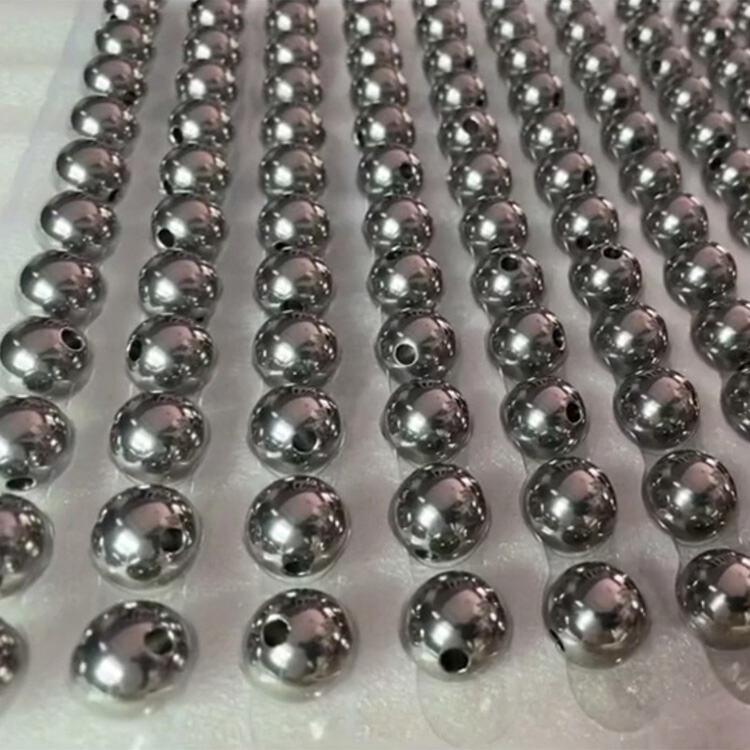

Titanium Bead Chains/ Bracelets: Utilizing the skin-friendly property of titanium and its anodized colors, these are crafted into trendy accessories, Buddhist rosaries, and bracelets.
Pendant/earring accessories: Set as geometric elements through inlay or assembly.
Magnetic therapy accessory: When used in combination with magnetic beads, titanium serves as the spacer bead, being both lightweight and aesthetically pleasing.
Implants: As bone graft materials and components of spinal orthopedic systems (requiring the use of medical-grade titanium alloys, such as Gr5).
Radiotherapy positioning: In certain in-vivo radiotherapy or particle implantation treatments, it serves as a marker or carrier.
Surgical instrument counterweight/handle decoration.
One-way valve/reverse-flow valve core: Utilizing the corrosion resistance and high precision of titanium balls, it is used as a flow control sphere in chemical and semiconductor equipment.
Float switch: A float used for detecting the liquid level of corrosive liquids (such as seawater, acid and alkali solutions), the titanium ball is lightweight and corrosion-resistant.
Precision bearing balls: Used as an alternative to steel balls in special bearings that require no magnetism and corrosion resistance.
Grinding medium: In the grinding of specific chemical powders, titanium balls are used to prevent the materials from being contaminated by iron.
Weight Ball: A lightweight counterweight used for underwater robots (ROV/AUV) or instruments.
Flowmeter components: Measuring elements used in seawater desalination or in ship piping systems.
Sculptures/Decorations: The polished titanium solid spheres possess a distinctive metallic luster, combined with anodized colors, and can be used as high-end home decorations or elements of installation art.
