ALL PRODUCTS

Titanium Rod

1KG/PCS(Min.Order)

Density:4.51g/cm³

High strength, corrosion resistance

Payment Terms:50% TT in advance

Packaging Details:International standard plywood

Price:customized product,contact us

Overview
Recommended Products

Description

Ylasting titanium as a Baoji China factory can produce a wide range of round rod product to a variety of standards for medical,industrial,and aerospace applications.

Also can customize titanium and titanium alloy rod of any grade and size according to your requirements.

Production Standards

Click the hyperlink to get detailed data.

Aerospace: AMS 4928

Medical: ASTM F136 ASTM F67

Industrial: ASTM B348

Bar titanium grades

Click the hyperlink for each brand to get detailed data

GR1 GR2 GR3 GR4

GR5(Ti-6AL-4V) GR7(Ti-0.15Pd) GR9(3Al-2.5V) GR12

GR23(6AL-4VELI) Ti-15333 Ti-6242 Ti-662 Ti6246

Bar Dimension Ranges (mm)

3~800mm

Bar Surface Finishes

Polished, Mill, Pickling, Painted, Brushed or Blasted,Bright, Rough Turned, Grinding, Black.

Bar Profiles

Square, Round, Hexagonal, Hollow, Octagon, Flats

Bar Tolerance

H8, H9, H10, H11, H12, H13, K9, K10, K11, K12 or as per clients’requirements

Bar Condition

Cold Drawn Polished Cold Drawn Centreless Ground & Polished, Annealed,

Specifications

Material grade	Availability status	Diameter, mm	Length, mm
Gr.1、Gr.2、Gr.3、Gr.4、Gr.5、Gr.7、Gr.9、Gr.12	Annealing state (M)	6.35~<12.70	1000~2000
		12.70~<25.00	1000~1800
		25.00~200	1000~2700

Chemical composition

Material grade	Main component, %						Impurity content, not more than, %
	Ti	Al	V	Mo	Ni	Pd	Fe	C	N	H	O	residual elementa
	Ti	Al	V	Mo	Ni	Pd	Fe	C	N	H	O	single	sum
Gr.1	margin	—	—	—	—	—	0.2	0.08	0.03	0.01	0.18	0.1	0.4
Gr.2	margin	—	—	—	—	—	0.3	0.08	0.03	0.01	0.25	0.1	0.4
Gr.3	margin	—	—	—	—	—	0.3	0.08	0.05	0.01	0.35	0.1	0.4
Gr.4	margin	—	—	—	—	—	0.5	0.08	0.05	0.01	0.4	0.1	0.4
Gr.5	margin	5.50~6.75	3.5~4.5	—	—	—	0.4	0.08	0.05	0.01	0.2	0.1	0.4
Gr.7	margin	—	—	—	—	0.12~0.25	0.3	0.08	0.03	0.01	0.25	0.1	0.4
Gr.9	margin	2.5~3.5	2.0~3.0	—	—	—	0.25	0.08	0.03	0.01	0.15	0.1	0.4
Gr.12	margin	—	—	0.2~0.4	0.6~0.9	—	0.3	0.08	0.03	0.01	0.25	0.1	0.4
Residual elements should include:Al、V、Sn、Mo、Cr、Mn、Zr、Ni、Cu、Si、Y、Nb、Hf、Bi、 Ru、Pd、 Co、Ta、B、W(The alloy elements contained in this grade should be removed);when it is not specified in the contract,residual elements are not analyzed,report externally according to the standard value.

Mechanical properties

Material grade	state	Mechanical properties at room temperature, not less than
Material grade	state	σь MPa （ksi）	σo.2 MPa （ksi）	δ4D %	ψ %
Gr.1	Annealing(M)	241（35）	172（25）	24	30
Gr.2		345（50）	276（40）	20	30
Gr.3		448（65）	379（55）	18	30
Gr.4		552（80）	483（70）	15	25
Gr.5		896（130）	827（120）	10	25
Gr.7		345（50）	276（40）	20	30
Gr.9		621（90）	483（70）	15	25
Gr.12		483（70）	345（50）	18	25

Applications

Titanium and titanium alloy bar and rod is Ylasting titanium the best product in the global market. Due to its high strength, corrosion resistance, light and other characteristics, so the application field is very wide, such as

Aerospace industry

Laptop computers

Medical

Armour

Jewellery

Chemical processing systems

Automotive parts and exhaust systems

About other applications you want to know please click on Knowledge or contact us and we will offer you professional advise.

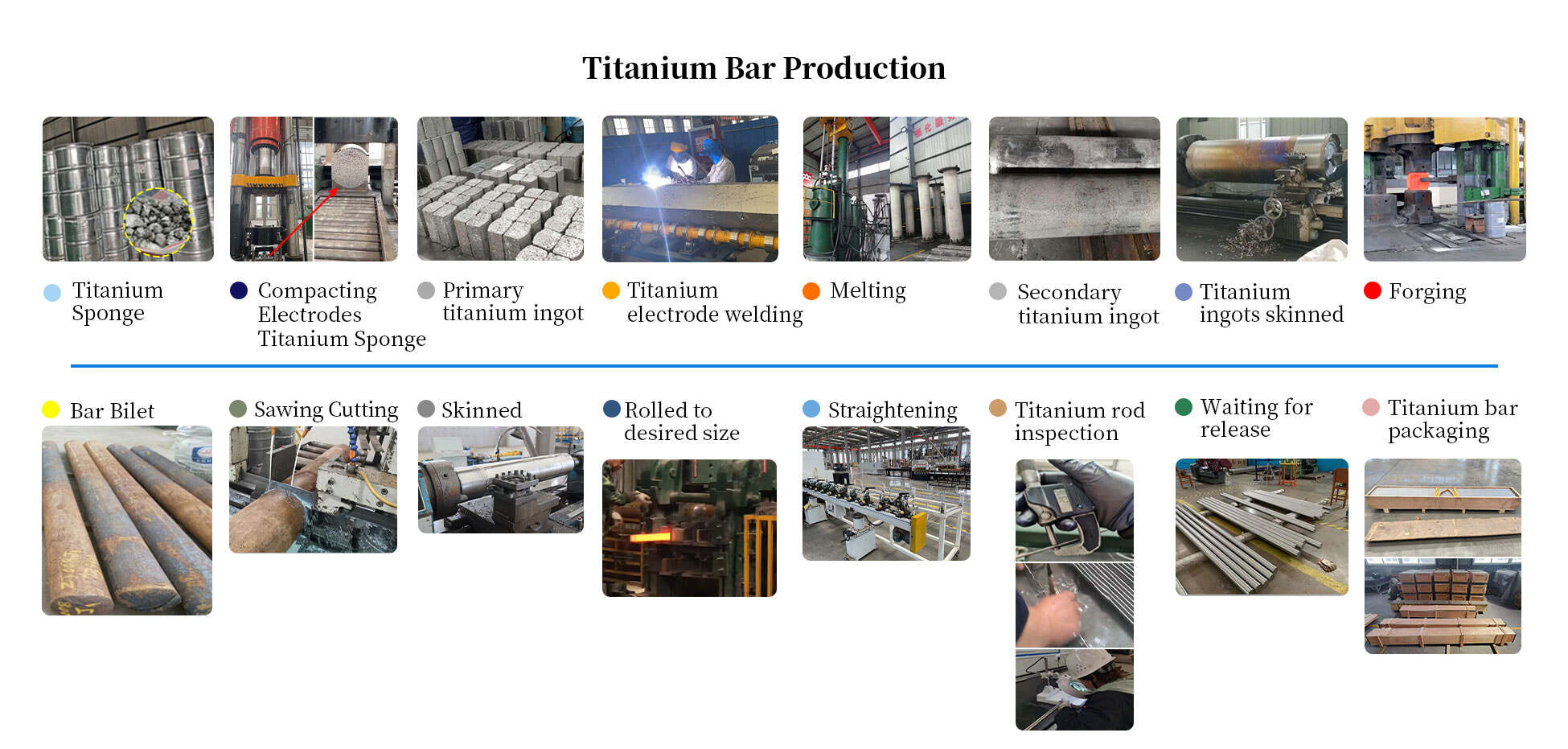

Production process for titanium bar /rod

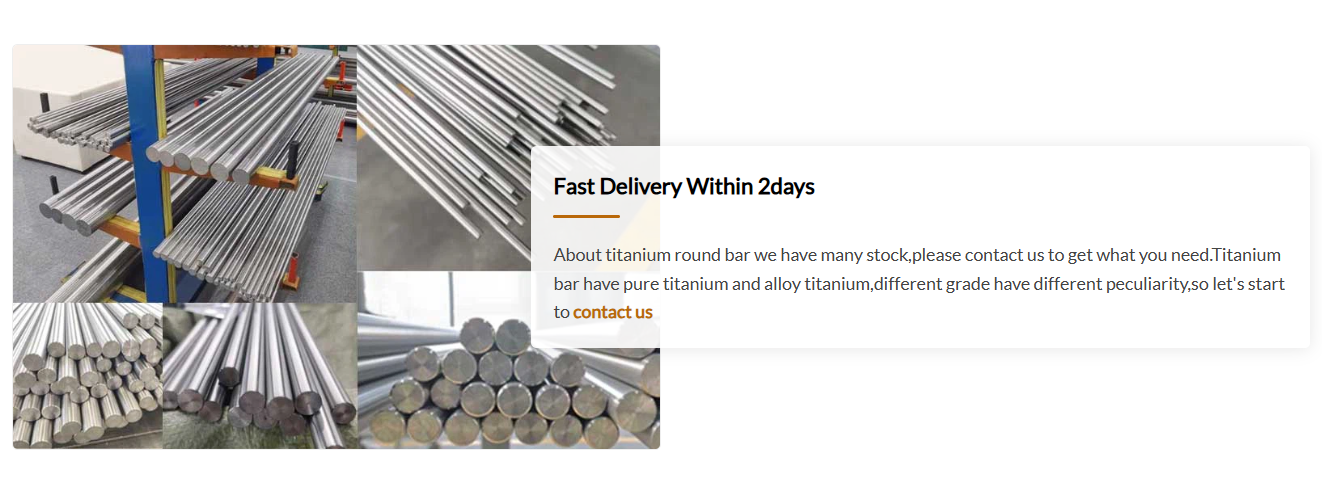

Fast delivery within 2days for titanium rod

Package

About us

At Ylasting titanium, titanium rod and bar is a very good global sales product,Production with ASTM standards, customer speak highly of titanium rod quality and surface, so now if you are finding a long-term stable production of titanium rod manufacturers, please contact us.
